DC Motor, Electronics Components

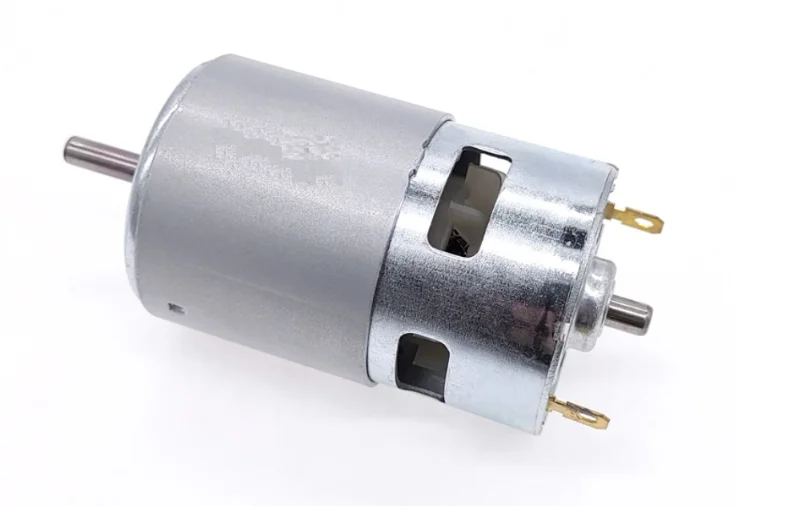

12V DC Motor(Multipurpose)
Delivery time:
2-5 days
【12V DC Multipurpose Motor】
✔ RPM Range: 3000-6000 (Customizable)
✔ High Torque Output | Low Noise
✔ Metal/Plastic Gearbox Options
✔ Shaft Size: 3mm/6mm (Selectable)
✔ Ideal for Robotics, Conveyors, DIY
₹406.25
12V DC Motor – The Ultimate Power Solution for Your Projects
This 12V DC motor delivers reliable performance for robotics, automation systems, and countless DIY applications. Available with optional gearboxes for torque/speed customization.
Key Features:
- ⚙️ Customizable Output – Choose 3000RPM (high torque) or 6000RPM (high speed)
- 🔋 Efficient Operation – 70-85% efficiency at rated load
- 🔌 Easy Integration – Pre-soldered 20cm wires with bare ends
- 🛡️ Durable Construction – Metal brush gear with oil-impregnated bearings
- 🔄 Reversible Rotation – Simply swap polarity
Popular Applications:
• Robotics Joint Actuation
• Conveyor Belt Systems
• Automatic Gate Openers
• DIY Electric Vehicles
• Solar Tracker Systems
• Industrial Automation
Gearbox Options:
1:48 Metal Gearbox – For high torque applications
1:15 Plastic Gearbox – Lightweight speed reduction
⚠️ Note: For continuous operation, maintain current below 80% of rated value.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Operating Voltage | 12V DC (±10%) |
| No-Load Speed | 6000 RPM (3000 RPM gearbox) |
| No-Load Current | 0.5A |
| Stall Current | 5A (Max) |
| Shaft Diameter | 3mm or 6mm (Selectable) |
| Mounting Holes | M3 Threaded (4x) |
| Weight | 280g (Without gearbox) |
| Certification | CE/RoHS Compliant |
