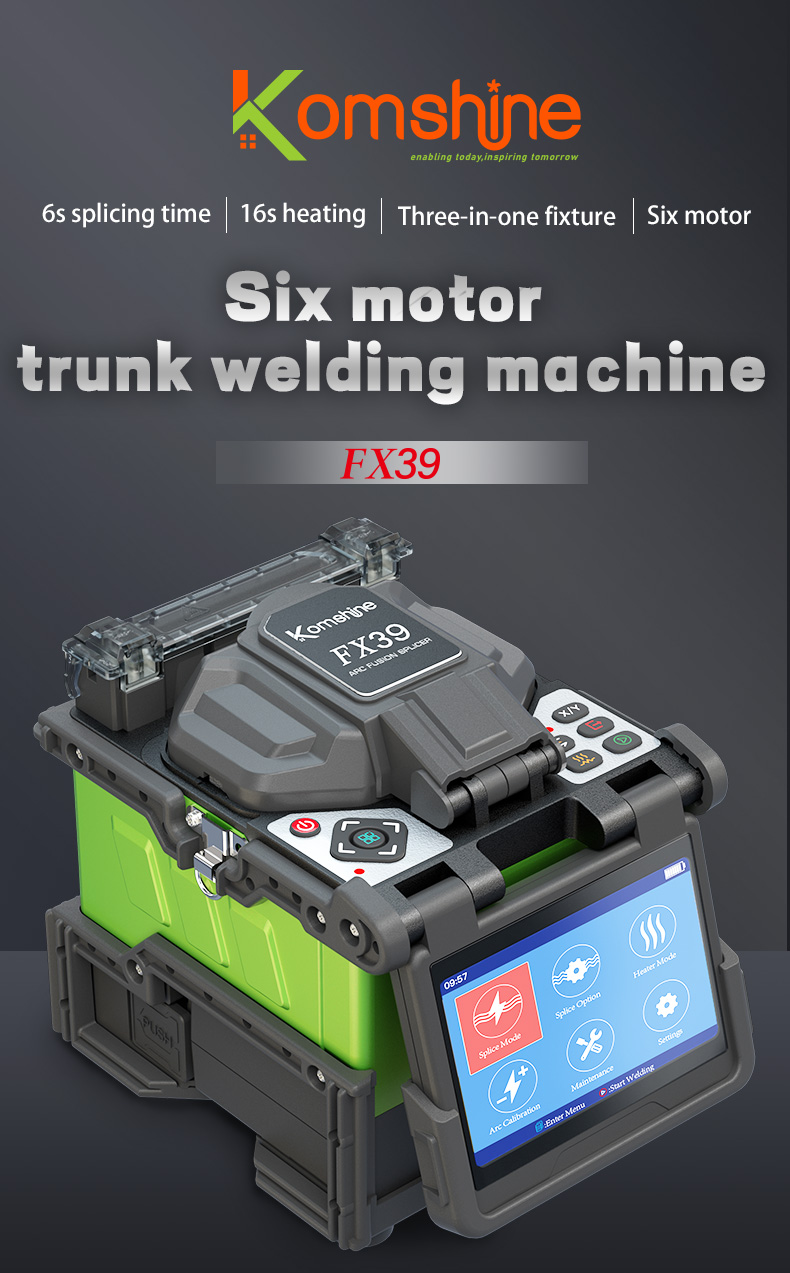

Komshine FX39 Fusion Splicer 6 motor Fiber Splicer Optical splicing Machine
Available on backorder
● 6S fast splicing, 16S fast heating
● 5000 times electrode service life
● 7800mAh battery, 400 cycles of splicing and heating
● Average splice loss 0.01dB
● Can store 10000 sets of splicing results and 2000 sets of images
● 4.3 inch LCD color display
● USB interface, convenient for data download and software update

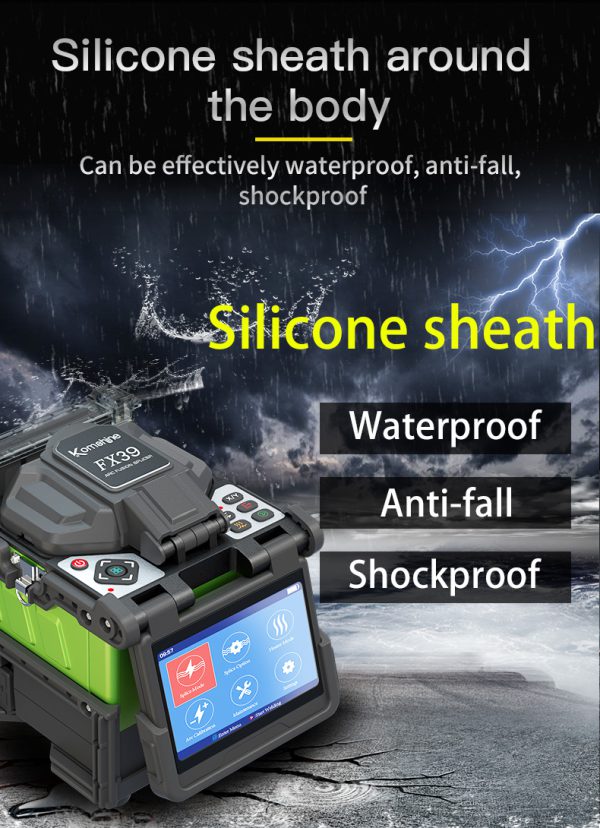

● Silicone protective cover, can effectively waterproof, anti-fall, anti-vibration
● Real-time discharge correction, stable splicing accuracy
● Small size, easy to carry and transport
₹201,250.00
Available on backorder

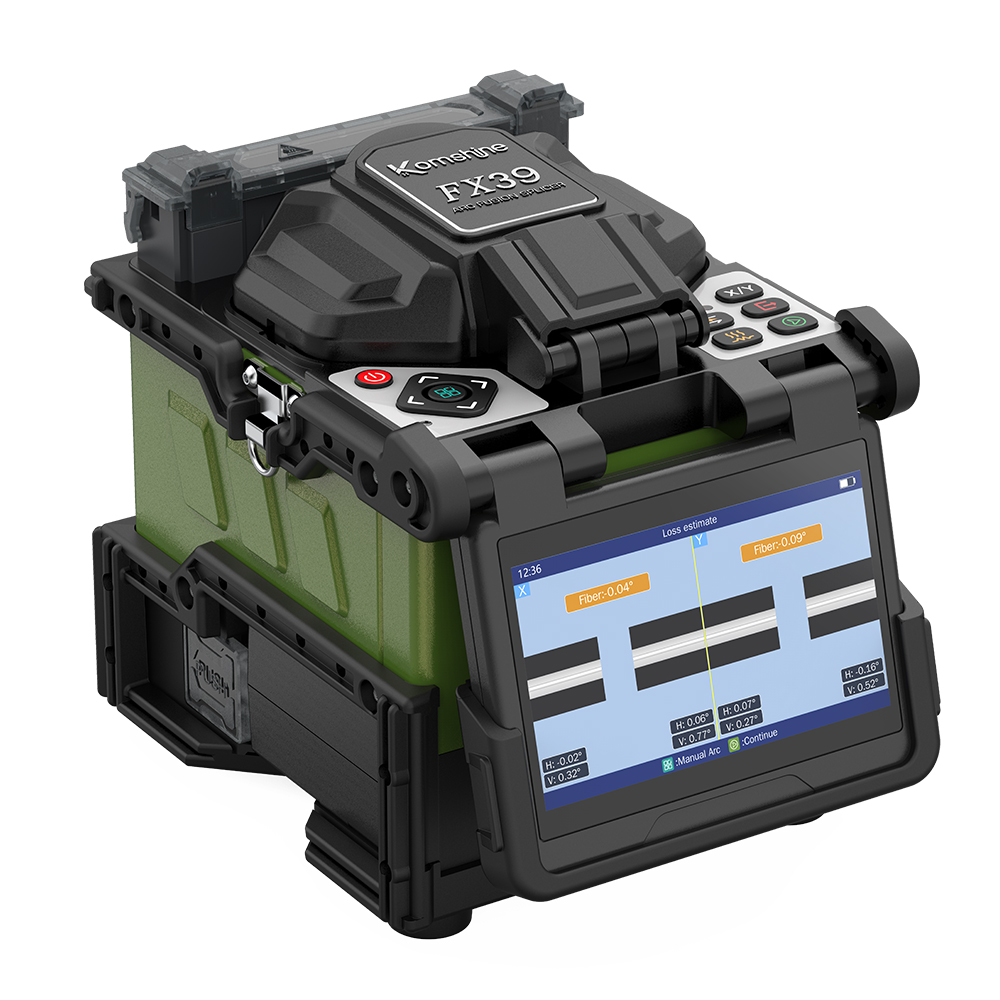

Komshine FX39 Fusion Splicer 6 Motors Core Alignment Fiber Optic 6s Splicing 16s Heating
Why choose Komshine FX39 ?
- Supports 3 years warranty. Products’ whole life technology guide supports
- Machine build-in 6 motors core alignment backbone fusion splicer, 6S fast splicing, 16S fast heating.
- 4.3 inch LCD color display. Small size, easy to carry and transport.
- 5000 times electrode service life.
- Average splice loss 0.01dB.
- 7800mAh battery, 400 cycles of splicing and heating.
- Can store 10000 sets of splicing results and 2000 sets of images.
- Real-time discharge correction, stable splicing accuracy.
- USB interface, convenient for data download and software update.—USB interface, convenient for data download and software update.
| Dimensions | 158 × 132 × 157 cm |
|---|
| Alignment method | Core to core alignment |
| Applicable fiber type | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Fiber type | Replaceable universal fixture, SOC fixture (optional) |
| Fiber diameter | Cladding diameter: 80-150μm，
Coating diameter：100~1000μm |
| Cutting length | 8~16 mm |
| Splicing mode | Maximum 128 groups |
| Splicing loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★① |
| Return loss | >>60dB |
| Splicing time | 6 seconds(SM G652 QUICK mode) |
| Loss estimation | Yes |
| Heating time | 16Seconds(SM G652 250um 40mm heat shrink tube,based on quick mode) User adjustable |
| Applicable heat shrinkable length | 20mm, 30mm, 40mm, 50mm, 60mm |
| Heating mode | Maximum 32 groups |
| Battery capacity | 7800mAh lithium battery，each cycle supports 400 times splicing and heating ★② |
| Electrode life | About 5000 times discharges ★③ |
| Automatic discharge calibration | Automatically calibrate according to ambient temperature and air pressure changes |
| Result storage | 10000 sets of splice data, or 2000 sets of splice images |
| Tension testing | 1.96~2.25N |
| Operating conditions | Altitude:0~5000meters,
Relative humidity:0~95%,-20~50 , Maximum wind speed:15meter/second |
| Storage condition | Relative humidity 0~95% , -20~60°C temperature |
| Display screen | 4.3 inches, high-definition LCD display |
| Zoom in and display | X, Y, XY, X/Y : 320 times magnification |
| Weight | 1.72kg without battery / 2.25kg with battery |
| Size | 158H x 132W x 157D mm (including rubber bumper |
| Port | USB2.0 |
