Gas Sensors, Robot Parts and Kits

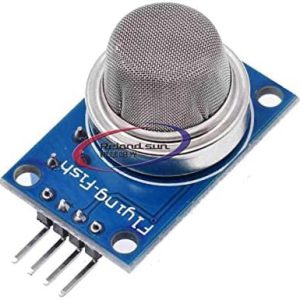

MQ2 Sensor Module
- MQ-2 Modul is a device that is used for sensing and measuring the concentration of gases in the air. It can detect such gases as: LPG, propane, methane, hydrogen, alcohol, smoke and carbon monoxide.
- It can measure a gas concentration from 100 to 10000ppm and is ideal for detecting a gas leak, as a gas alarm or for other robotics and micro-controller projects.
- The MQ series sensors use a small heating element with an electronic-chemical sensor. They are sensitive to various gases and are suitable for indoor use.
- The sensor has a high sensitivity and fast response time, but needs a few minutes to give accurate readings because the sensor needs to heat up first.
- The measured values of the sensor are output as analogue values, which can be easily evaluated with a micro-controller.
- This sensor is ready for connection to a micro-controller, such as an Arduino board. For use with a Raspberry Pi an additional AD converter is required.
- The module has a potentiometer for setting the threshold value. At the digital pin, the sensor outputs only a 0 or 1, depending on whether the set threshold value is exceeded.
SKU: 2023082503 -
-
Electronics Components, RFID READER MODULE

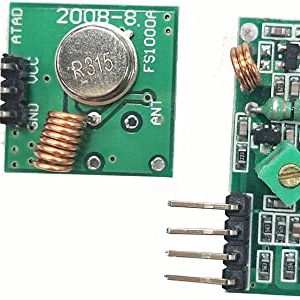

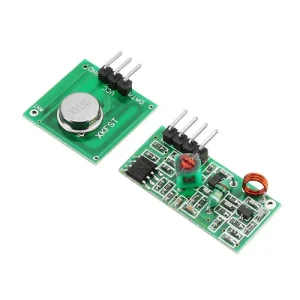

RF Module (Rx/Tx) 433MHz
A 433MHz or 315MHz RF (Radio Frequency) module is a low-cost wireless communication solution commonly used for short-range data transmission in remote controls, home automation, and IoT projects. These modules typically consist of a transmitter (Tx) and a receiver (Rx) pair that communicate via Amplitude Shift Keying (ASK) modulation.
SKU: 2023100305 -
Electronics Components

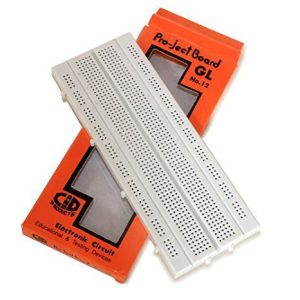

Solderless Breadboard large
Breadboard – GL-12 – 840 Tie Points
A breadboard is a construction base for prototyping of electronics.The term is commonly used to refer to solderless breadboard. Because the solderless breadboard does not require soldering, it is reusable. This makes it easy to use for creating temporary prototypes and experimenting with circuit design. Older breadboard types did not have this property. A stripboard (Perfboard) and similar prototyping printed circuit boards, which are used to build permanent soldered prototypes or one-offs, cannot easily be reused. A variety of electronic systems may be prototyped by using breadboards, from small analog and digital circuits to complete central processing units (CPUs).
A breadboard is used to make up temporary circuits for testing or to try out an idea. No soldering is required so it is easy to change connections and replace components. Parts will not be damaged so they will be available for re-use afterwards.
SKU: 2023090303 -
Digital Temperature Sensor, Electronics Components, Temperature Sensors

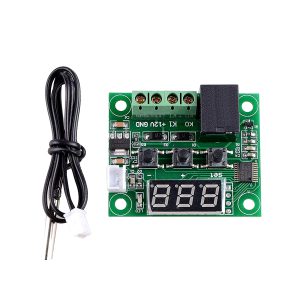

W1209 Temperature Controller
- The Robotbanao W1209 digital temperature controller module with display and NTC Waterproof Temperature Sensor is a 12V Temperature controller with 7-segment display. It has a 3 switch keypad for setting temperature and other parameters. The module features an NTC thermistor temperature sensing and has an accuracy of 0.1 C.
- LED display | Inbuilt embedded micro-controller | NTC temperature sensor | No programming knowledge required | Onboard relay | Display current temperature | 3 digit 7 segment display
- Dimensions: W1209(LxWxH):48x40x14mm | Cable Length:0.5 Meter
- The W1209 digital temperature controller module can be used to measure and display temperature, turn any application On/Off based on temperature reading. It can be used in appliances such as fire alarm system or auto cut off electric water heater.
- Temperature Control Range(°C): -50 to +110 | Resolution @-9.9°C to +99.9°C: 0.1°C | Resolution @all temperatures: 1°C | Accuracy: 0.1°C | Refresh Rate(s): 0.5 | Supply Voltage(V): 12 | Measuring Inputs: NTC10K | Output Type: 1 Channel Relay Output | Capacity: 10A | Long pressing “+/-” will reset all values to their default
SKU: 2023091107
