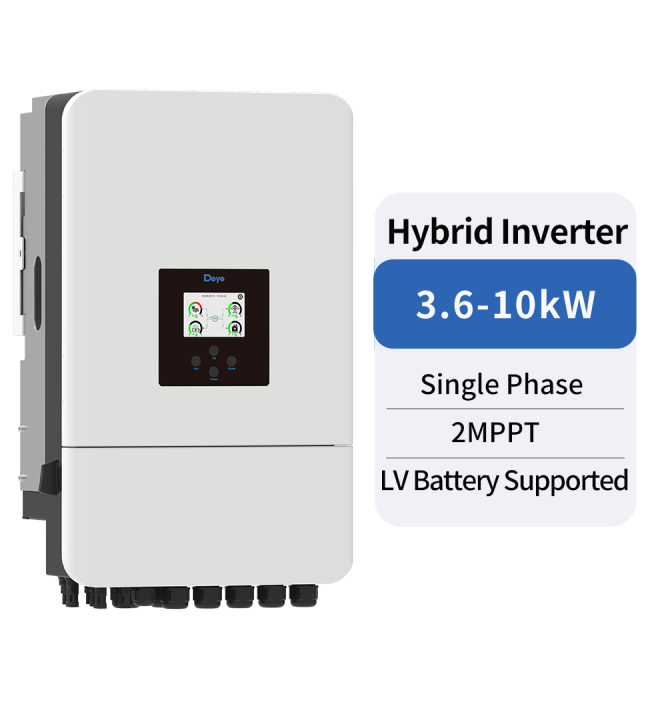

Deye 7kW Single phase Hybrid Solar Inverter – SUN-7K-SG05LP1-EU-SM2-P
Ask for price in INR. Contact sales to confirm availability and delivery in India.
Deye 7kW single phase hybrid inverter for solar and compatible battery storage in India. Exact model: SUN-7K-SG05LP1-EU-SM2-P. Ask for price and availability. Ask for price in INR. Contact sales to confirm availability and delivery in India.
Ask for price
Ask for price in INR. Contact sales to confirm availability and delivery in India. Contact sales and quote SUN-7K-SG05LP1-EU-SM2-P.
Deye 7kW single phase hybrid solar inverter in India
Evaluate the SUN-7K-SG05LP1-EU-SM2-P for a rooftop solar and battery storage project in India. This 7kW hybrid inverter brings solar generation, compatible battery storage and grid power management into one unit. Its single-phase output is an option to assess for homes, retail shops and small offices.
Choose a system around your loads
Start with your electricity connection and simultaneous load requirements. Match the inverter to solar panel string limits and a compatible battery with appropriate BMS communication and current capability. Backup runtime depends on usable battery energy and power consumption. Solar panels, batteries, mounting and installation are separate unless listed in your quotation.
Model specifications
| Exact model | SUN-7K-SG05LP1-EU-SM2-P |
|---|---|
| Phase | Single phase |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range(V) | 40-60 |
| Max.Charging Current(A) | 175 |
| Max.Discharging Current(A) | 175 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of battery input | 1 |
| Max. PV Access Power (W) | 14000 |
| Max PV Input Power（W） | 11200 |
| Max PV Input Voltage（V） | 500 |
| Start-up Voltage（V） | 125 |
| MPPT Voltage Range（V） | 150-425 |
| Rated PV Input Voltage(V) | 370 |
| Max Operating PV Input Current（A） | 32+32 |
| Max Input Short-Circuit Current（A） | 48+48 |
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/2+2 |
| Rated AC Input/Output Active Power（W） | 7000 |
| Max AC Input/Output Apparent Power （VA） | 7700 |
| Rated AC Input/Output Current（A） | 31.9/30.5 |
| Max AC Input/Output Current（A） | 35.0/33.5 |
| Max Continuous AC Passthrough (grid to load)（A） | 50 |
| Peak Power (off-grid)（W） | 2 times of rated power,10s |
| Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un |
| Grid Connection Form | L+N+PE |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz |
| Power Factor Adjustment Range | 0.8 leading-0.8lagging |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| DC Injection Current | <0.5%ln |
| Max Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| MPPT Efficiency | ＞99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
| Surge Protection Level | TYPE II(DC),TYPE II(AC) |
| Communication Interface | RS485/RS232/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| Operating Temperature Range | -40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0~100% |
| Permissible Altitude | 2000m |
| Noise | ＜45 |
| Ingress Protection(IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC),OVC III(AC) |
| Cabinet size（W*H*D）[mm] | 366×589.5×237 (Excluding Connectors and Brackets) |
| Weight[kg] | 26.8 |
| Type Of Cooling | Intelligent air cooling |
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105 |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Planning a hybrid solar installation in India
For projects in Delhi, Mumbai, Bengaluru, Chennai, Hyderabad, Pune or elsewhere in India, a qualified installer should assess roof shading, temperature, ventilation, site altitude and manufacturer derating limits. Check PV string design, battery compatibility, cable sizing, earthing, surge protection and backup load separation. Confirm local utility and DISCOM interconnection requirements before enabling grid export; this listing does not promise net-metering approval.
Ask for the India price
Contact NeoGiga sales for the current price in INR, availability, delivery coverage and applicable warranty for this exact model. Request an itemized quotation covering the inverter, battery capacity, solar panels, installation, taxes and delivery. Availability and delivery within India must be confirmed before ordering.
Technical source: Deye official model specifications. Manufacturer datasheet. The image represents the product family; confirm the supplied hardware revision and regional model in the quotation.
